35m3/h Concrete Batching Plant

XDM Special design 35m3/h Concrete Baching Plant

XDM Newly designed 35m3/h Ready mix Concrete Batching Plant:

Combining our own 20years experience with European latest concrete batching plant technology, XINDA Machinery(XDM) manufactures newly environmentally friendly designed Ready mix concrete batching plant.

XDM concrete batching plant come with the most advanced fully automatic SIEMENS PLC+IPC controlling systems that are capable of controlling and managing production flow.

The HZS series Stationary Ready mix Concrete Batching Plant find wide application for building, railways, highways, airports, docks, dams, etc.

1. Top quality components(SIEMENS, TOLEDO, AIRTAC, SCHNEIDER, WAM, SICOMA...)

2. Easy transportation and fast installation

3. CE, ISO, SCG certification

4. JS series of twin shaft mixer is adopted, with the advantages of good mixing quality and high production efficiency.

5. Computer system can be controlled by manual, semi-automatic, or automatic, with the functions of storing ratio and automatically compensation gap.

6. Can be customized. Various forms of combination can be provided according to customers’ requirements.

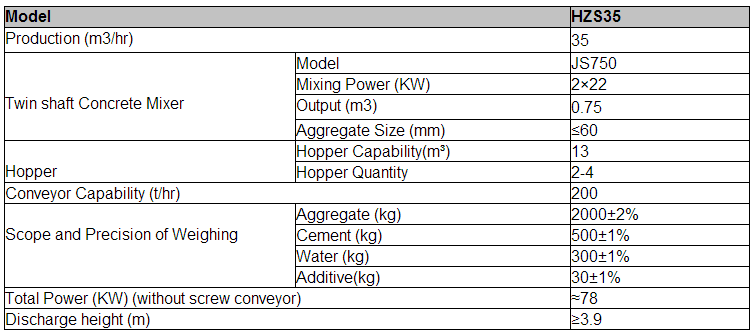

Main Technical Parameter of 35m3/h Concrete Baching Plant
