Ready mixed concrete batching plant

Brand:
XDM
Payment:
LC / TT
Market Price:
$150000
Price:
$150000/160000
Product Origin:
CHINA
Color:
Color can be determined according to client
Shipping Port:
Xiamen sea port
Lead Time：
30-45days

Inquiry Now

Product Detail

Product Description

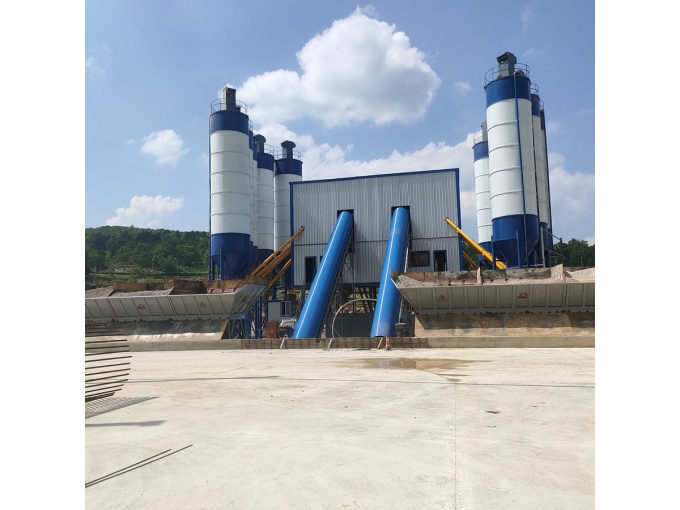

Ready mixed concrete batching plant HZS120 with JS2000 mixer SIEMENS PLC control

Combining our own experience with European technology, XDM manufactures environmental friendly ready-mixed concrete batching plant. Our products come with automatic twin-computer synchronization controlling systems that are capable of controlling and managing production flow with one or two computers. Our versatile products find wide application for pre-cast pipes, components, dam construction and marine construction.

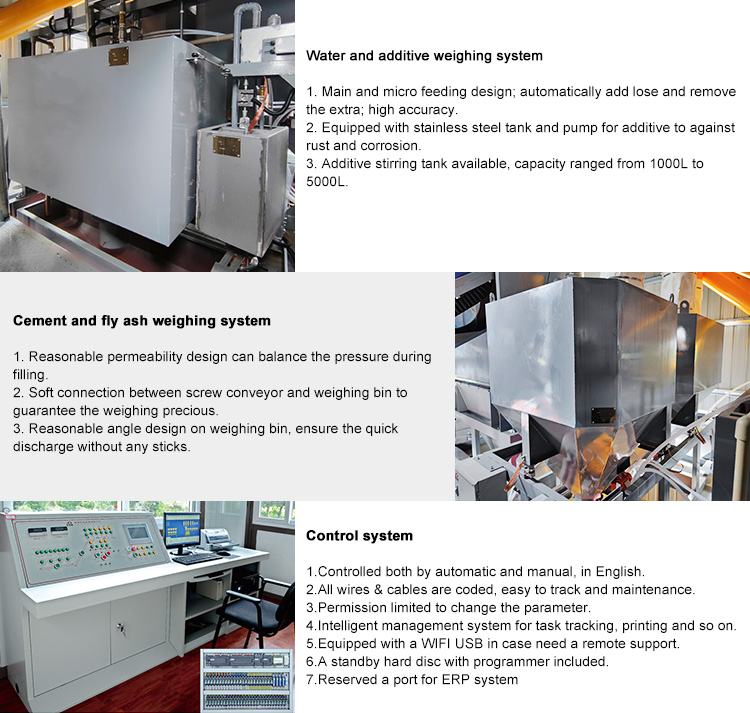

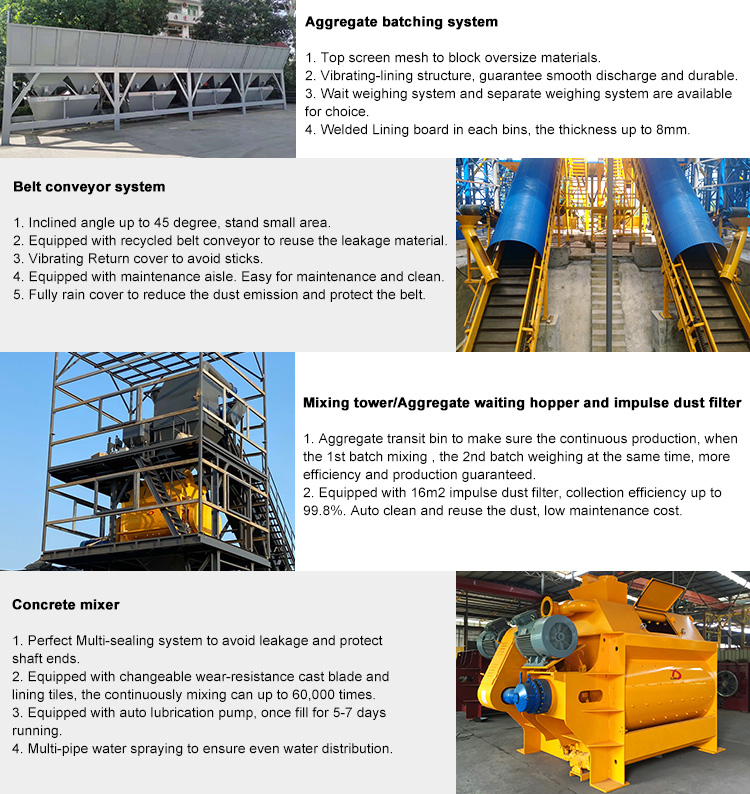

1. Batcher: 4* aggregate bins and adopting separate weighing system or accumulative weighing system .
2. Conveyor: adopting the flat belt or groove belt , which distribute the materials fast and little vibration; with walk aisle, so easy clean and maintenance.
3. Mixer: adopting (synchronization coupling) twin-shaft compulsory mixer, it can mix evenly and fast, the ability is strong.
4. Control system: controlled by IPC with whole auto-operate, with the 20 years experience, the controlling procedure is designed perfectly. And the system needn't professional to operate. The people who get simple training can operate.
5. Environmental: with perfect dust collector and external packing, full closed, pack the mixing tower and belt conveyor with colorized steel corrugated plate, protect environment, clean and beauty.
6. Mixing Plant is operated in high voltage power. (Three-phase alternate current.380V/50HZ).

Specification

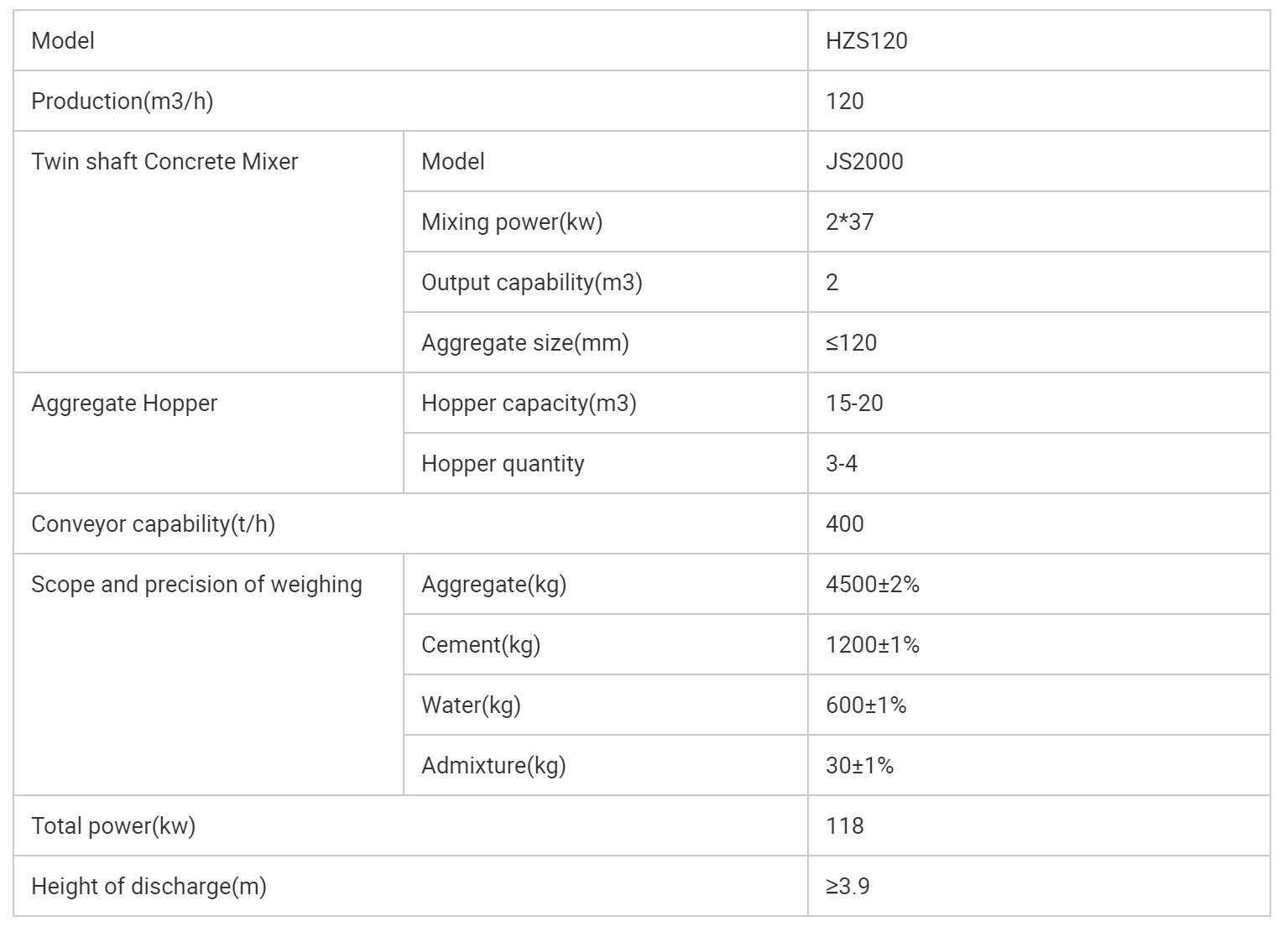

The Main Technical Parameters of Ready mixed concrete batching plant HZS120 with JS2000 mixer SIEMENS PLC control

FAQ

Q1: What kind of equipment and service you supply?
A1: We manufacture, sell and supply after-sale service of Central mix Concrete Batching Plants, Transit mix Concrete Batching
Plants and Subgrade materials continuous mixing plant.

Q2: Do you offer warranty on your equipment?
A2: Yes, we offer a full warranty on new equipment purchasing.

Q3: How long will your offer be valid?
A3: We are a manufacturer, never greedy on windfall profit. Basically, our price remains stable through a year; we only adjust our
price when the international currency exchange rate changed or the labor & raw material cost changed.

Q4: How about the installation and commissioning on new purchases?
A4: We will send our technicians to your place to guide the installation, commissioning and training your operator.

Q5: how long it will take to erect the Mobile Concrete Batching Plants?
A5: Normally, it will take 7-10 days to erect the Mobile Plants, but it depend on the condition of the jobsite.

Q6: what’s the leading time for brand new Concrete Batching Plants?
A6: Within 30 days after receipt of the 30% TT down payment or 100% irrevocable L/C at sight without “soft clauses”
