Stationary Concrete Batching Plant

  • Brand:

  • Item NO.:

  • Payment:

    T/T or L/C
  • Product Origin:

  • Shipping Port:

    Xiamen Port
  • Lead Time:

Inquiry Now
Product Detail

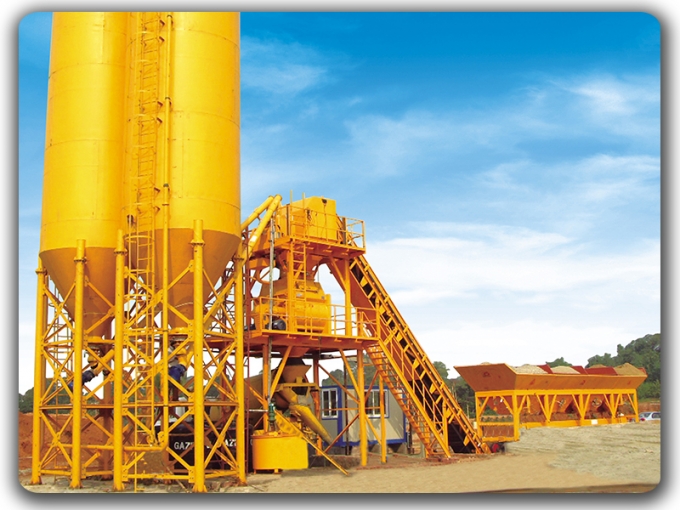

Stationary concrete batching plant

Stationary concrete batching plant occupies a small area, it is convenient for installation and moving To meet the general requirements of most railways, highways, airport and docks, we adopt modular design. Our machine. The customers can choose whether to configure external package and dust collecting device or not, as well as other configurations.

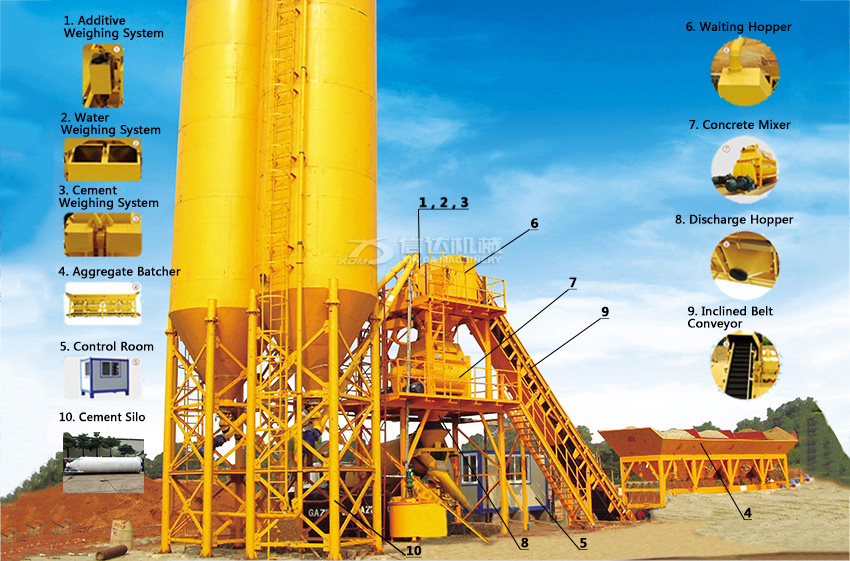

Component of XDM Stationary Concrete Batching Plant

Stationary Concrete Batching Plant

twin-shaft concrete mixerBy using twin-shaft compulsory mixer, it mixes evenly and rapidly, achieving good mixing effect for all kinds of dry concrete, semi-dry concrete and plastic concrete. Multi-angle stirring arm avoids the phenomenon of concrete holding shaft. When the mixer main engine works the mixing shaft counter rotates. The materials remain in boiling motion under the action of the mixing blade. Meanwhile, under the shearing action of the stirring arm, the material is fully mixed in a relatively short period of time.

batching plant control systemThe control system uses domestic advanced double machine synchronized control and is equipped with specialized UPS power supply, high performance long-life Siemens PLC, high speed and high precision weighing unit module, the international famous low-voltage electrical component, and is combined with our professional control and monitoring software. In the concrete mixing equipment industry our company creatively adopts the high performance PLC+IPC (Industrial Personal Computer) control system which achieves the most reliable operation, the lowest failure rate, the easiest failure processing, and the lowest requirement for the capacity of the maintenance personnel.

aggregate batcher

The aggregate batcher can be designed to installation underground, partially underground or on the ground. The aggregate hopper can accommodate 3-5 hoppers. The hopper discharge gate speeds are pneumatically controlled by the computer to discharge the aggregate into the weighing hopper. The weighing of the aggregate can be done in separate or accumulative models according to the operational form.

Water and Additvies weighing systemWater and Additvies weighing system: Pump straight into weighing hopper or gravitationally feed into the weighing hopper through the upper storage tank. According to different circumstances, a three-point or single-point sensor suspension is adopted. The weighed admixture and water enter into the mixer according to the instructions.

Cement weighing system

Cement weighing system: Cement & fly ash is delivered to corresponding weighing hopper by screw conveyor or the pneumatic conveying. The number of weighing hoppers is decided as required, being generally one to three hoppers. After being weighed the powder is put into the mixer in accordance with the instruction. All powder sensors use three-point suspension.

Belt conveyorThe aggregate conveying system: Belt conveyor is truss-framed for easy assembly. The inclination angle is normally less than 20 degrees; however, if the chevron (groovy) pattern belt is used, the inclination angle can be up to 20 to 45 degrees. The belt tension device is a standard weight-drop type for easy adjustment. The conveyor belt system is completely sealed.

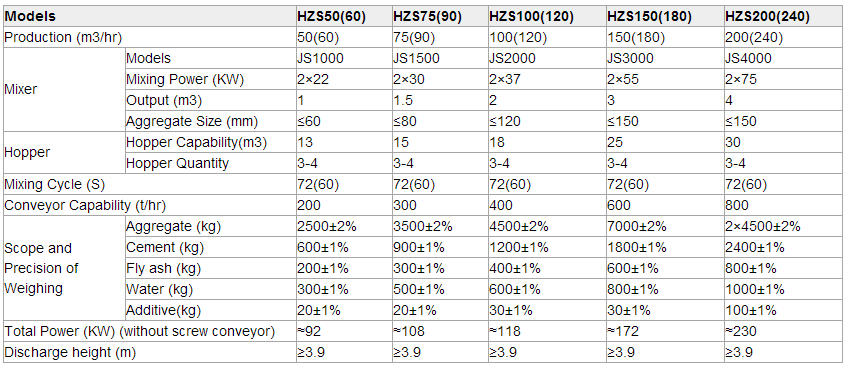

Main Technical Parameters of Stationary Concrete Batching Plant

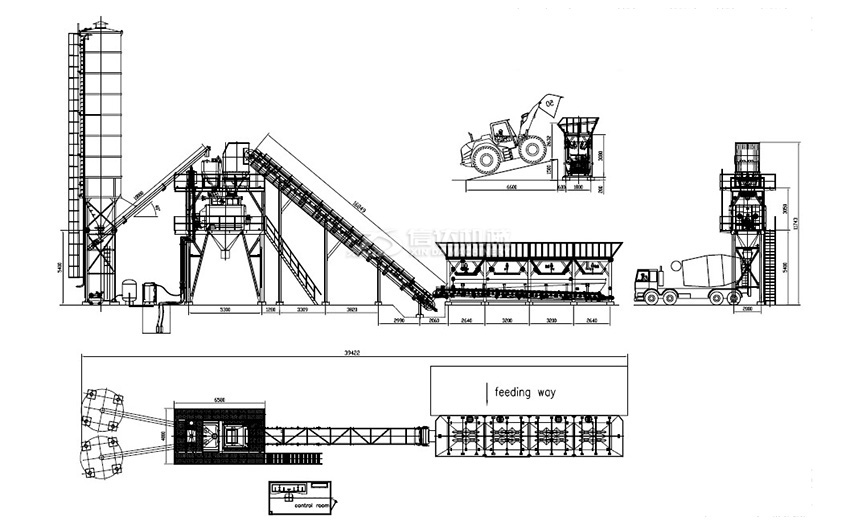

General layout of Stationary Concrete Batching Plant

layout of Concrete Batching Plant

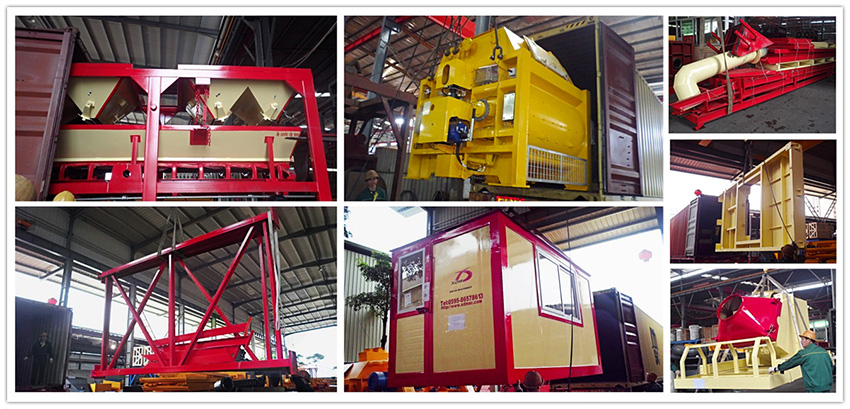

Packaging and Shipping

concrete batching plant packing

XDM Concrete Batching Plant case(click picture for details)

50m3/h concrete batching plant


60m3/h concrete batching plant


90m3/h concrete batching plant


120m3/h concrete batching plant


180m3/h concrete batching plant
