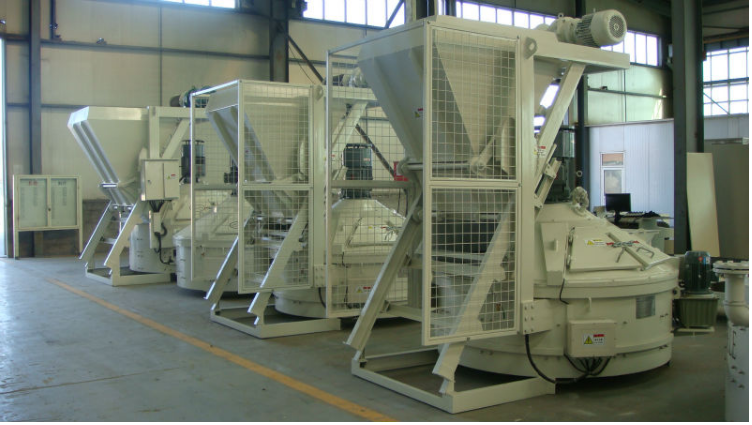

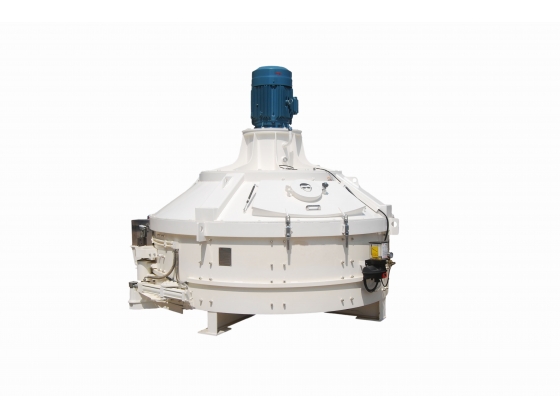

Features of Planetary Concrete Mixer


1. The reduction unit (patent technology), ensures a high efficiency and low-noise rotation. Compared the traditional gearbox, this unit takes less space, and the maintenance space of the mixer can enlarge 30%.

2. Special designed mixing facility makes the mixing faster and more homogenous, no material heaped.

3.According to different materials, the liner and tiles can be cast-iron, HARDOX steel plate (Sweden original) or hard facing materials.

4. Ni-hard cast iron blades are more wearable.

5. Large access facility is for easy maintenance and cleaning.

6. The key-operated safety switch and limit switch guarantee  safety

7. Hydraulic system equipped with manual pump allows the door be opened in case of electric failure.

8. Maximum three discharging doors are available.

Options

1. Hydraulic coupling

2. Moisture Probe

3. High Pressure Washout System

Specifications  of Planetary Concrete Mixer

Item

MPC

50

100

150

250

330

500

750

1000

1500

2000

2500

3000

Filling Volume

L

75

150

225

375

500

750

1125

1500

2250

3000

3750

4500

Feeding Capacity

Kg

120

240

360

600

790

1200

1800

2400

3600

4800

6000

7200

Compacted Concrete

L

50

100

150

250

330

500

750

1000

1500

2000

2500

3000

Mixing Power

Kw

4

5.5

7.5

11

15

18.5

30

37/45

55/75

75/90

90/110

110/132

Mixing Star*Mixing Blade

Qty

1*2

1*2

1*2

1*2

1*3

1*3

1*3

2*3

2*3

3*3

3*3

3*3

Side Scraper/Discharge Scraper

Qty

1/-

1/-

1/1

1/1

1/1

1/1

1/1

1/1

1/1

1/2

1/2

1/2

Discharging Power

Kw

Pneumatic Discharging

2.2

2.2

2.2

3

3

4

4

4

Weight

Kg

500

850

1300

1500

2200

2500

3500

5500

6500

8500

10500

11000
